Introduction
We are excited to share another successful custom AMD Hackintosh desktop build running Apple's operating system: macOS Tahoe 26.5 (Build 25F71) powered by OpenCore 1.0.8. Built around the powerful AMD Ryzen 5 5600X processor and the feature-rich Gigabyte B550M Aorus Pro motherboard, paired with the native graphics muscle of the MSI Radeon RX 6600 XT, this workstation delivers top-tier performance for creative tasks, software development, and daily computing.
Hardware Specifications
Here is the detailed breakdown of the components used in this configuration:
- Processor: AMD Ryzen 5 5600X (6-Core, 12-Thread)
- Motherboard: Gigabyte B550M Aorus Pro
- iGPU: None
- dGPU: MSI AMD Radeon RX 6600 XT 8GB
- RAM: 16GB DDR4 PC28800 / 3600MHz

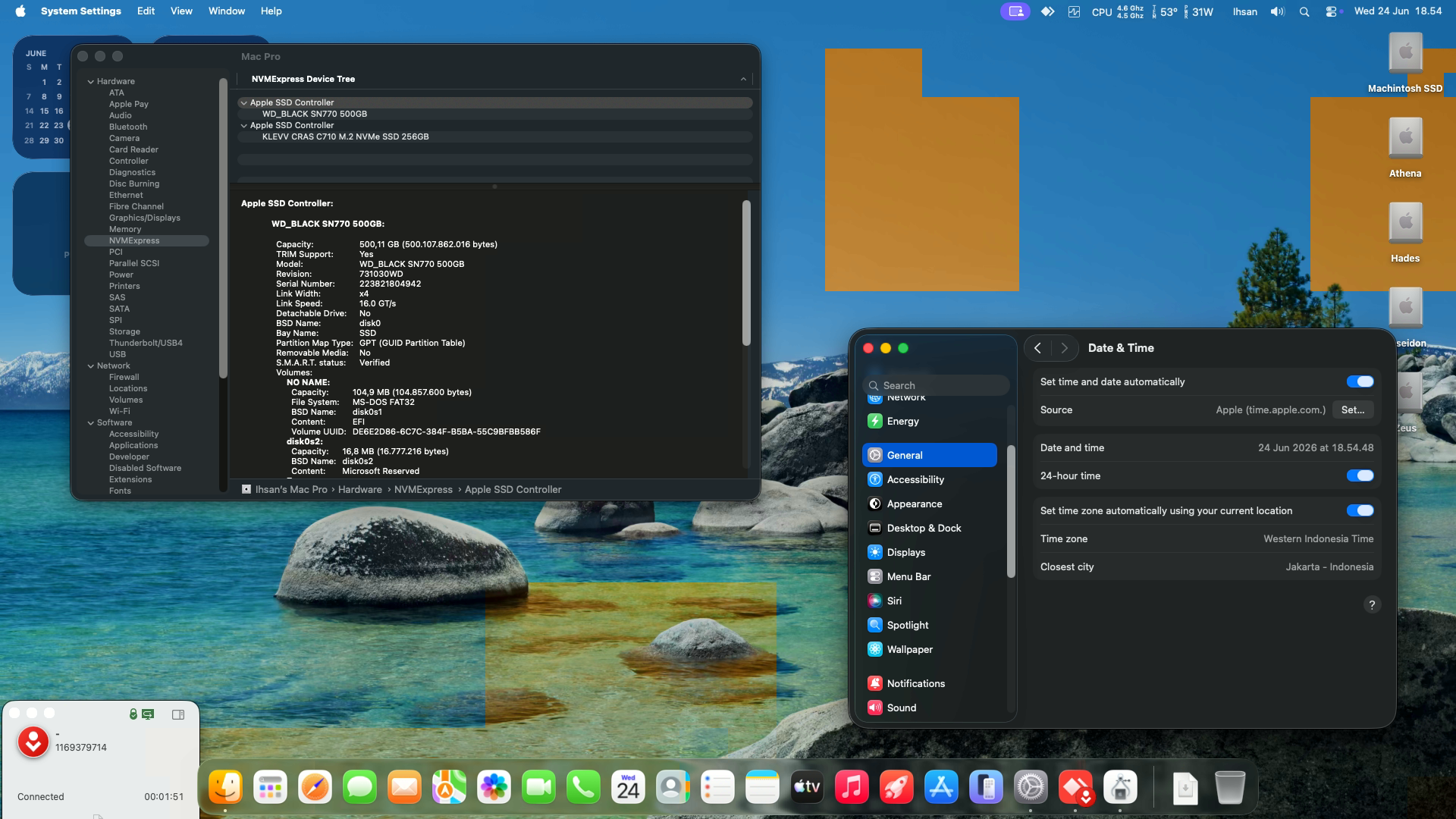

- Storage: 1x WD Black NVMe 500GB + 1x Klevv NVMe 256GB + 1x Seagate HDD 2TB
- Ethernet: Realtek RTL8125B 2.5GbE Ethernet
- USB Controllers: 2x AMD Chipset USB Controllers
- Audio Codec: Realtek ALC1200A
- Display: Gigabyte G24F 23.5" Display (1920 x 1080 resolution)
- Boot Mode: UEFI
- Bootloader: OpenCore 1.0.8
- OS Version: macOS Tahoe 26.5 Build 25F71
System Status & Functionality
Thanks to the modern OpenCore bootloader and proper kext selection, this AMD Ryzen system operates with extreme stability and fluid responsiveness.
What's Working:

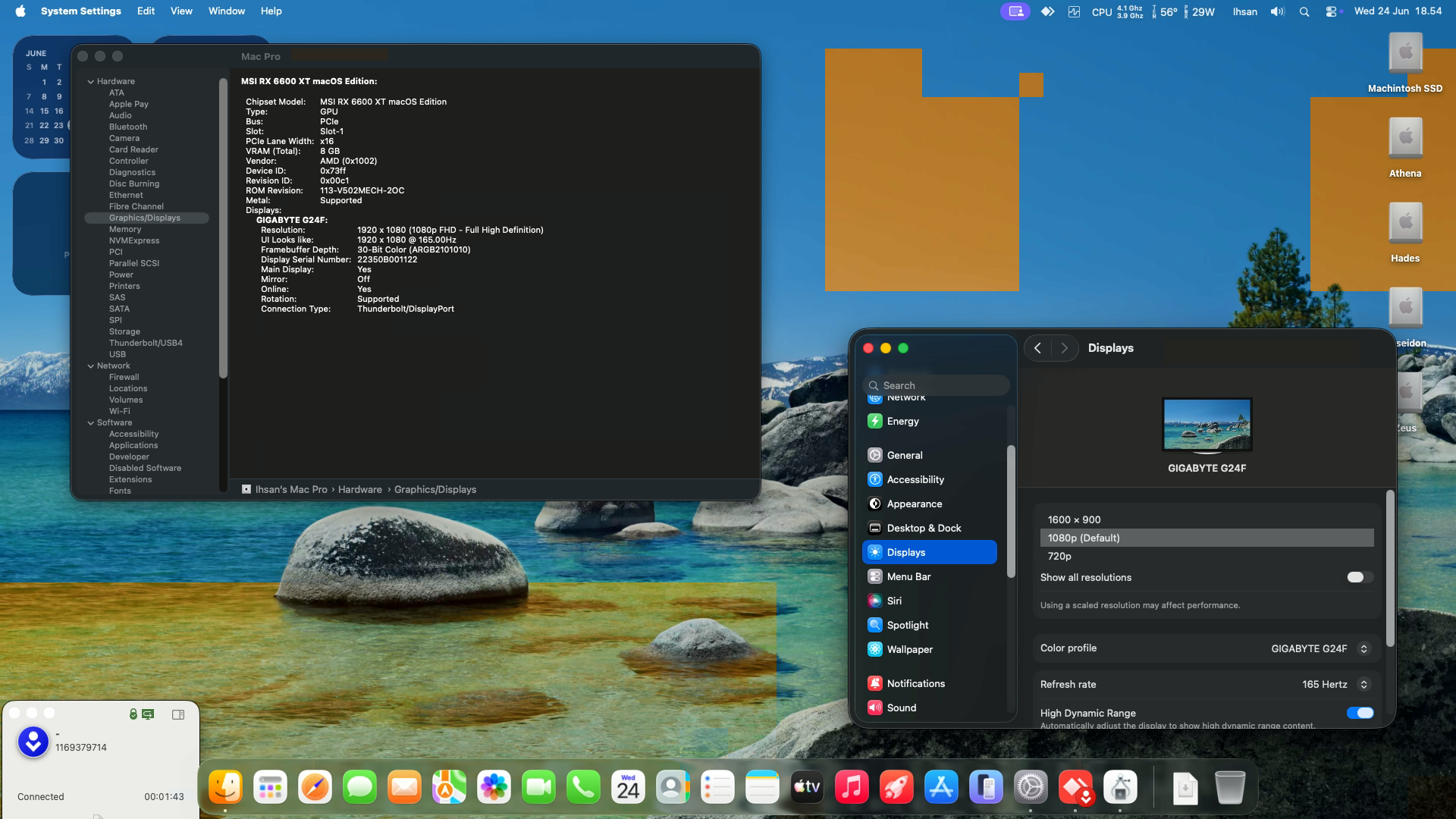

- Graphics Acceleration (QE/CI): Full native GPU acceleration on the MSI RX 6600 XT with
agdpmod=pikeraboot argument. - CPU Power Management: Properly patched kernel for AMD dynamic frequency scaling and power management.

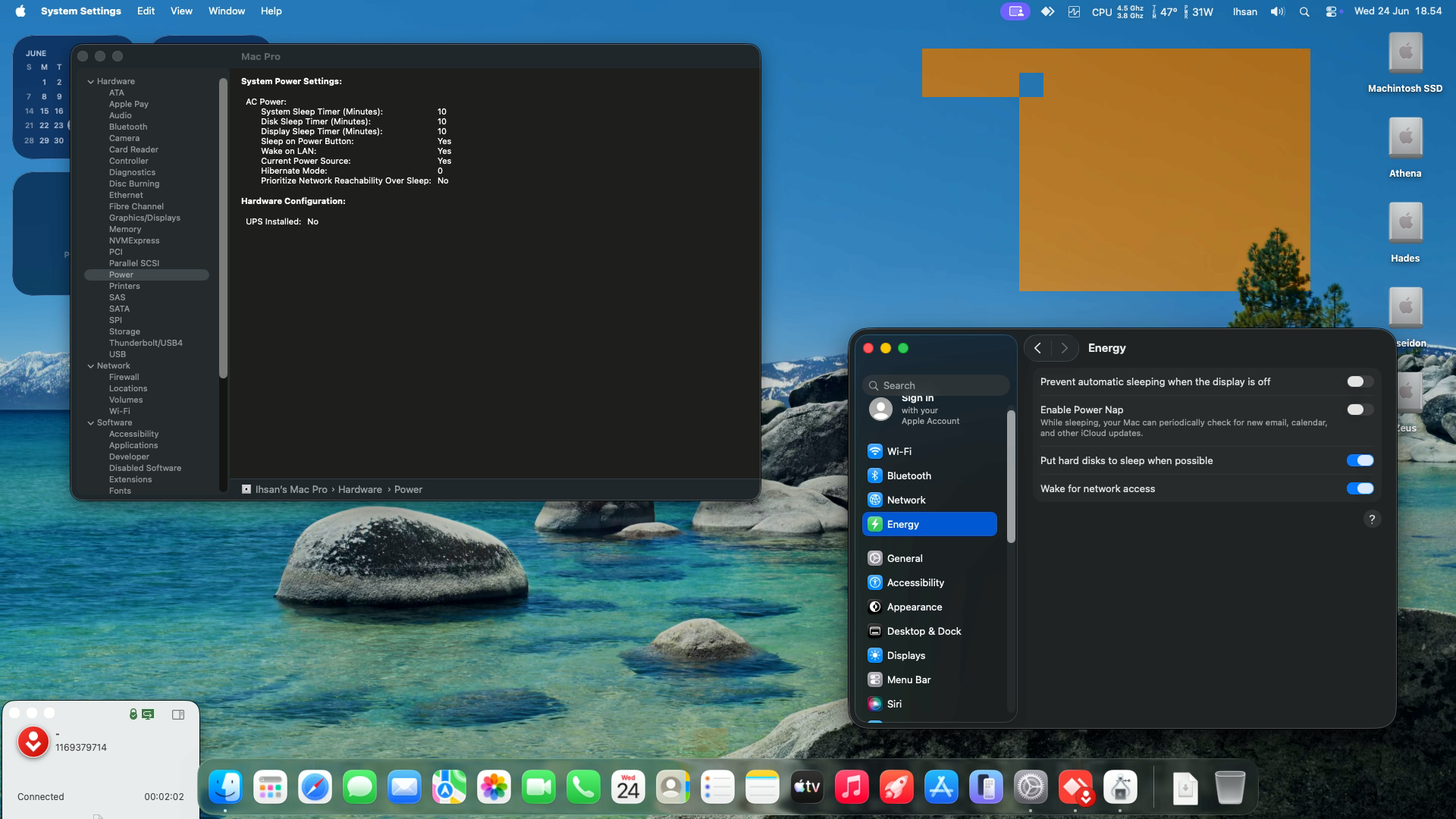

- System Power Features: Restart, Sleep, and Shutdown function perfectly without kernel panics.

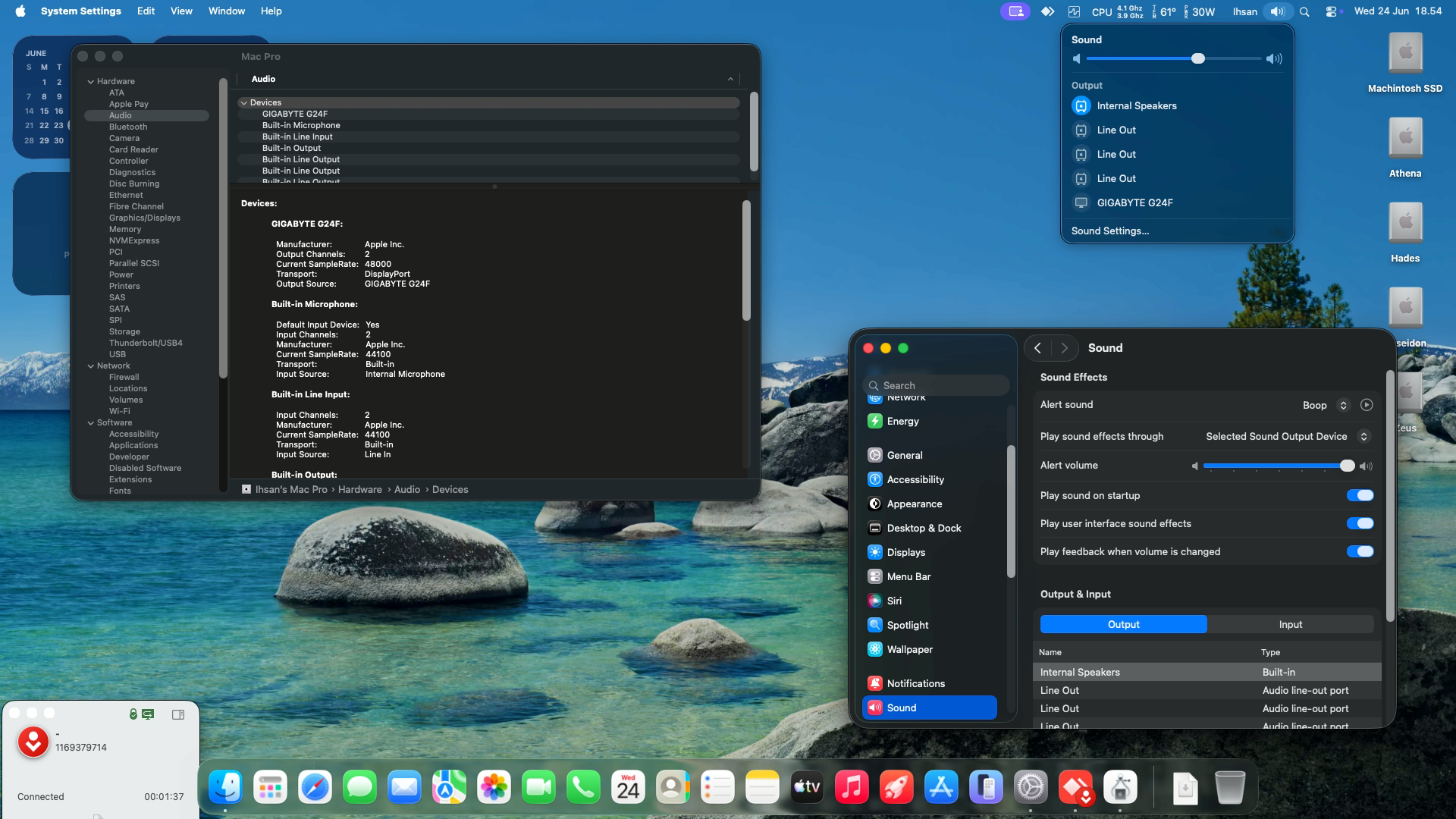

- Audio Output: Rear line-out and front headphone jack working fine via AppleALC.kext.
- Display & Audio Passthrough: HDMI and DisplayPort video output and integrated audio work as expected on the Gigabyte G24F.
- Networking: Full 2.5GB Ethernet speed enabled by LucyRTL8125Ethernet driver.

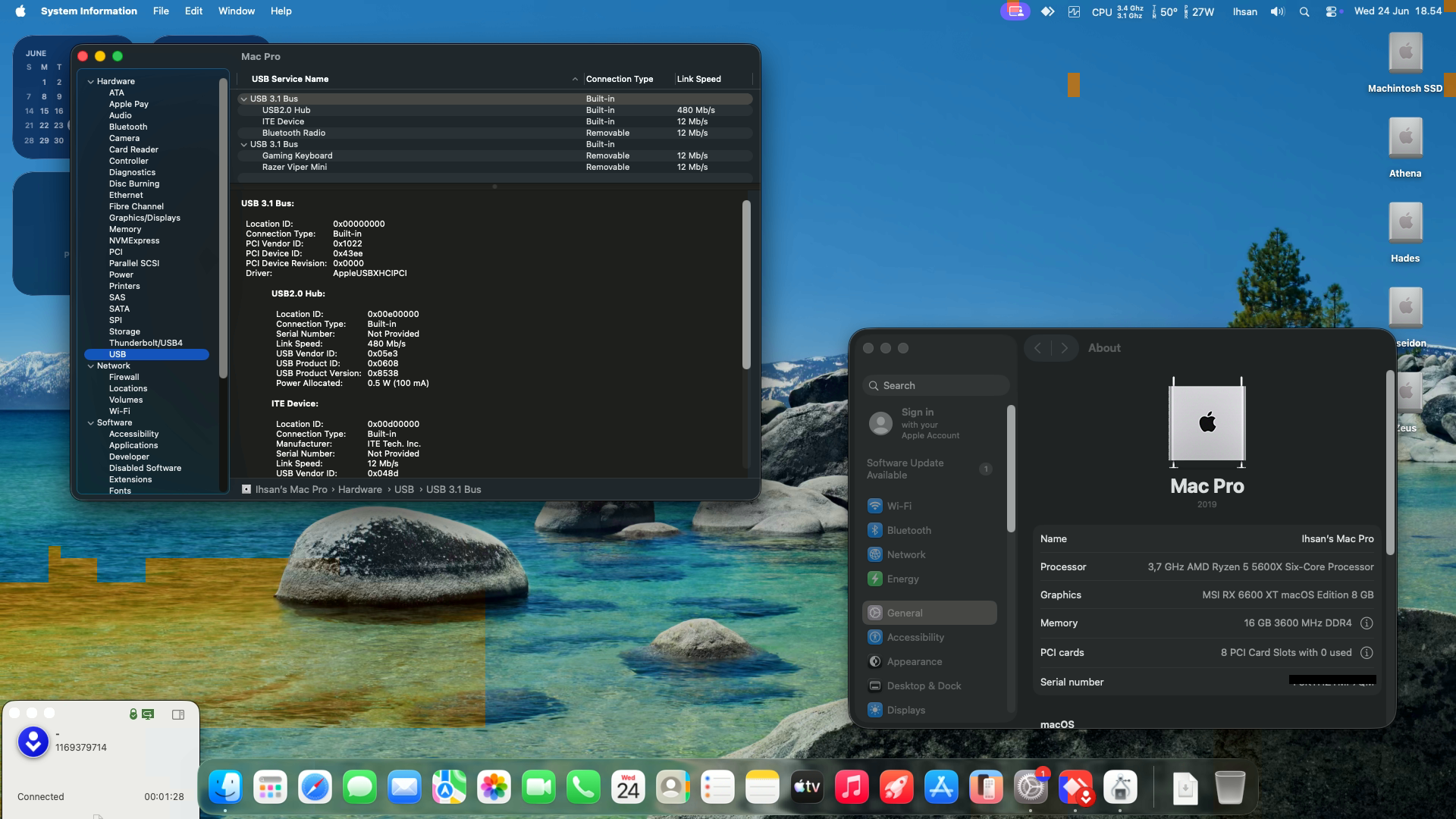

- USB Port Mapping: All USB ports properly mapped across both chipset controllers for maximum stability.
What's Not Working:
- Analogue Audio Input Jack: standard limitation for AMD Hackintosh builds using AppleALC.kext. Users are advised to use a USB microphone or external audio interface for voice input.
Configuration Notes
Building an AMD Ryzen Hackintosh requires updating the OpenCore kernel patches to match the 6-core 5600X layout. For the Navi 23 graphics card (RX 6600 XT), the agdpmod=pikera parameter in boot-args is essential to prevent a black screen during boot. Proper USB mapping was also performed to preserve sleep and wake capabilities.
Conclusion
The AMD Ryzen 5 5600X paired with the Gigabyte B550M Aorus Pro and MSI RX 6600 XT provides a cost-effective, high-performance platform for running macOS Tahoe 26.5. If you need assistance configuring or installing macOS on your PC, feel free to contact our professional installation services.
